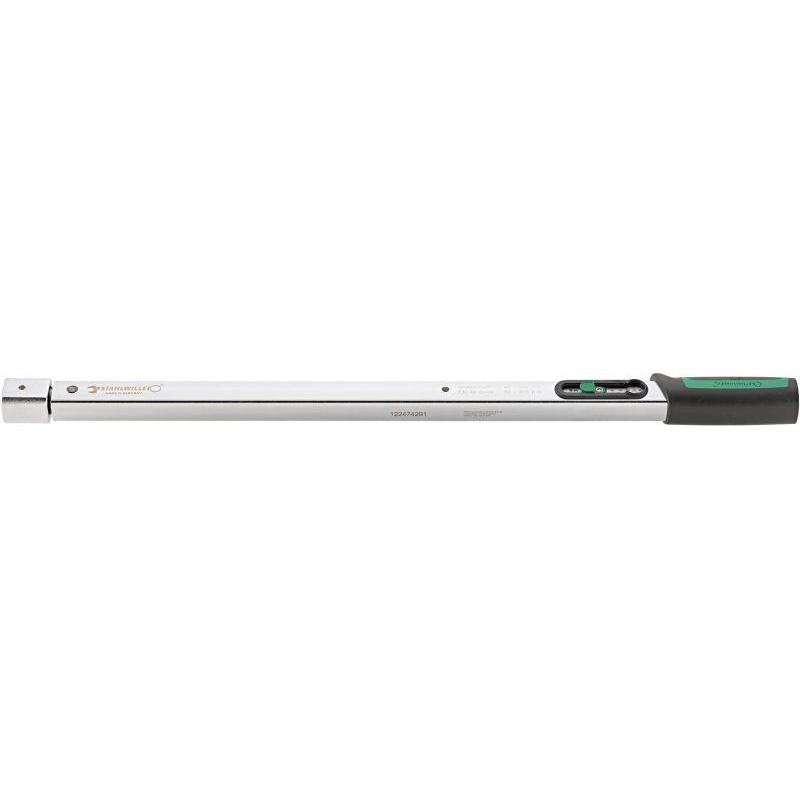

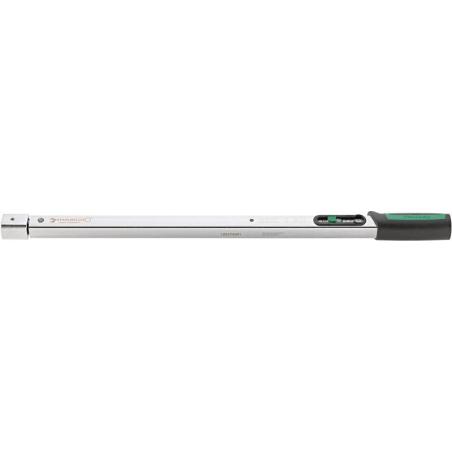

730/40 QUICK - MANOSKOP® service torque wrench, 80-400 Nm (60-300 ft.lb), 14x18 mm, with dual scale, 50184040

Snap-on type
The measuring element is loaded only when force is applied; no manual zeroing is required
Mounting for interchangeable tools
QuickRelease safety lock (sizes 5-65)
Quick adjustment thanks to an easy-to-use locking lever in the handle (sizes 5-65)
Ergonomically designed, non-slip adjustment knob with a thumb recess
Magnifying glass integrated into the display.
Optimized, contoured handle for stress-free operation
Dual stop signal
Dual scale: Nm / ft-lb and Nm / in-lb (sizes 5-80)
Also available upon request in an Nm-only version without the dual scale (sizes 5-65)
can be used for clockwise or counterclockwise tightening by rotating the inserts over
any force applied to the tool after a "click" or applied in the opposite direction to the current function—e.g.
e.g., forceful loosening of a jammed screw—does not affect the trigger mechanism and cannot cause
damage to it. Calibration using the perfectControl® calibration unit No. 7794 or calibration system No. 7706. Readjustment does not require disassembly. Certificate compliant with
DIN EN ISO 6789-2:2017
Deviation value ± 4%.
