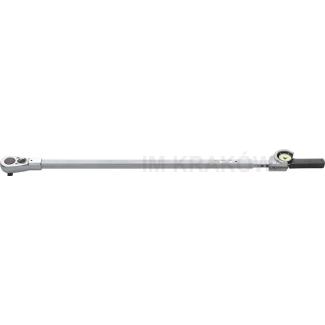

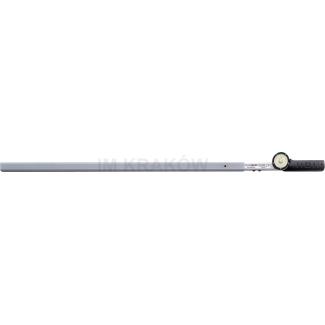

High-torque wrenches

Indicator type
Permanently mounted square drive for clockwise operation
Pointer dial
No "needle wobble" during measurements
Lighter construction thanks to the use of aluminum
Certified in accordance with DIN EN ISO 6789-2:2017
indication deviation ± 4%

indicating
dial
gauge
dual N-m/ft-lb scale
scale sheet made of luminescent, bright yellow special film ensuring clear visibility of the display even in low light
protection of the dial gauge sensor with an additional protective ring
handle with integrated force compensation mechanism
not suitable for left-handed measurements
calibration using the perfectControl calibration device No. 7794 or calibration device No. 7706. If
necessary, readjustment without disassembly
with certificate
delivered in a fabric bag
indication deviation ± 4%.

indicator-type chuck
for interchangeable tools
all 14 x 18 mm insert tools can also be used with insert tool adapter No. 7370/80 (max. 650 Nm)
indicator dial
dual scale: Nm /ft-lb
the scale is made of a luminescent bright yellow special film that allows for clear readings even in low-light conditions
handle with integrated force compensator
the measuring element is a bending plate located in the handle
with overload protection
can be tightened clockwise or counterclockwise by turning the wrench
calibration using the perfectControl® calibration unit No. 7794 or calibration system No. 7706. Adjustment without disassembly
Certified according to DIN EN ISO 6789-2:2017
Supplied in a fabric bag
Deviation ± 4%
